Note:

If you want the receiver and controls matching,there are 2 conditions that must be met

①frequency:433Mhz

②coding:1527 learning code.

Technical Parameter

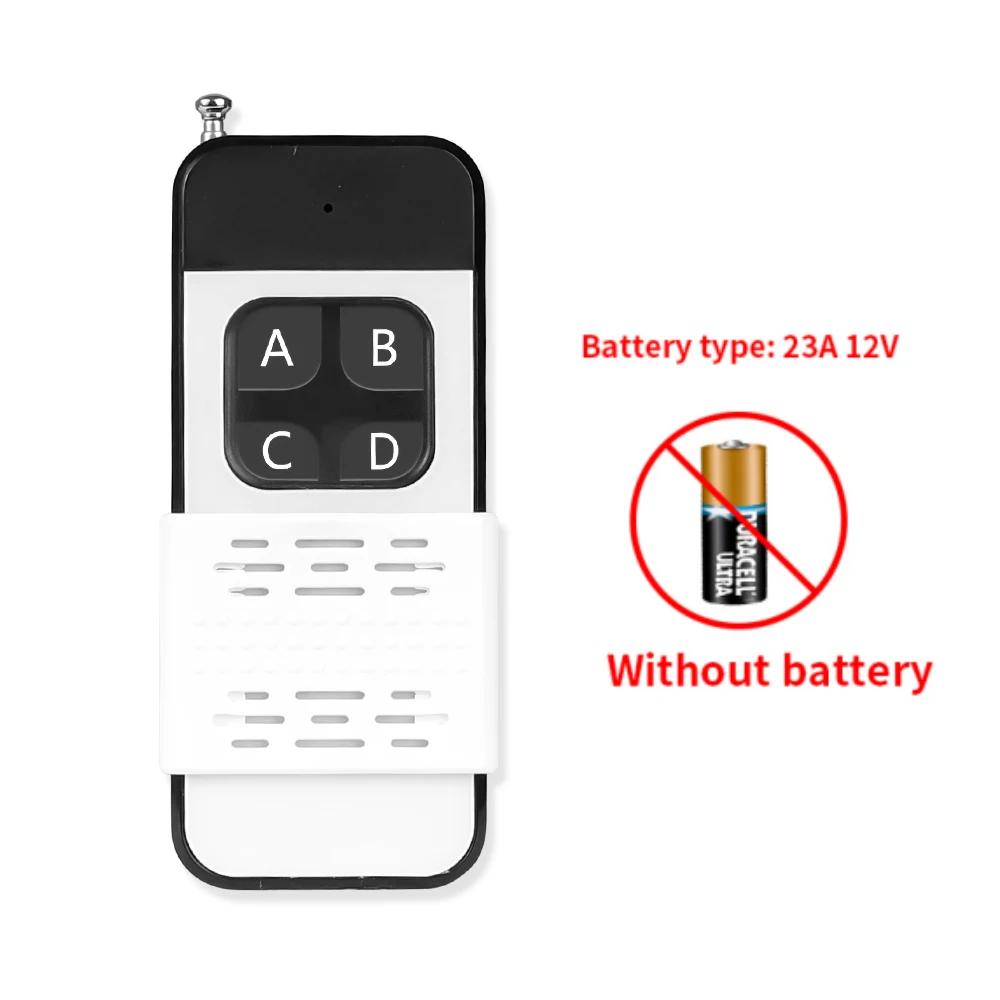

1 Battery: 23A 12V Battery(no include)

2 Working current: ≤ 10mA

3 Radiation power: ≤ 10mW

4 Timing resistor: 4.7M

5 Modulation mode: ASK (Amplitude modulation)

6 Working Frequency: 433mHz RF

7 Transmission Distance: 1000m (Open space is more than 1000 meters)

8 Encoder type: Learning code (1527 encoding ),Fixed code(2262 encoding).

The remote application:

1 motorcycle, car alarm product

2 home security product

3 remote control garage/gate door, remote control retractable door, remote control lights and other areas

4 Industrial brake control

Packing List:

1 X RF remote control (No battery)
